Payment Request with Braintree

This guide uses the plugin at version 13 or later (which is in beta at this stage).

We will proceed in steps: setup, initialization and payment.

First we'll details the basic setup steps, of course you can skip the first few steps if you already have a working application you want to integrate the code into.

  1. Install NodeJS and Cordova

  2. Setup your Cordova project

  3. Prepare an Account on Braintree

  4. Install the In-App Purchases plugin and Braintree extension

  5. Configure Braintree on iaptic

Once we have a Cordova application with Braintree support enabled and everything is in place on Braintree and Iaptic dashboards, we will move to coding a minimal demo app.

  1. Initialize the in-app purchase plugin

  2. Launch a payment request

  3. Handle the purchase events

  4. Finalize

Setup

1. Install Dependencies

Needless to say, make sure you have the tools installed on your machine. During the writing of this guide, I've been using the following environment:

  • NodeJS v10.12.0

  • Cordova v8.1.2

  • macOS 10.14.1

I'm not saying it won't work with different version. If you start fresh, it might be a good idea to use an up-to-date environment.

2. Create a Sandbox Braintree Account

Follow the instructions from Braintree to create a sandbox account. https://www.braintreepayments.com/sandbox

Markdown your API Credentials: Merchant ID, Public Key and Private Key.

3. Setup your Account on Iaptic

The Braintree implementation requires a server component that interacts with Braintree to create and settle transactions. Server side integration with the Braintree platform is outside the scope for this tutorial. We'll use Iaptic's own integration that provides a simple platform neutral interface.

Go to iaptic.com to create an account (or login if you already have one). Fill in the Braintree section in iaptic's settings.

Also mark down your iaptic's App Name and Public Key.

4. Install the Braintree extension

Support for Braintree is added by installing an additional plugin with ID cordova-plugin-purchase-braintree.

For the most up-to-date information on how to install and setup the plugin, you can head to the plugin's GitHub page.

Let's install it:

cordova plugin add cordova-plugin-purchase-braintree

For this guide, I'll use an android device. As mentioned in the plugin's documentation, we have to add this section to our application's config.xml.

<platform name="android">
    <preference name="android-minSdkVersion" value="21" />
</platform>

Code

Base framework

index.html

Assuming you're starting from a blank project, we'll add the minimal amount of HTML for the purpose of this tutorial. Let's replace the <body> from the www/index.html file with the below.

<body>
  <div id="app"></div>
  <script type="text/javascript" src="cordova.js"></script>
  <script type="text/javascript" src="js/index.js"></script>
</body>

Let's also make sure to comment out Cordova template project's CSS.

You also need to enable the 'unsafe-inline' Content-Security-Policy by adding it to the default-src section:

<meta http-equiv="Content-Security-Policy"
      content="default-src 'self' 'unsafe-inline' [...]" />

You can download the full index.html file here.

javascript

We will now create a new JavaScript file and load it from the HTML. The code below will initialize the plugin.

document.addEventListener('deviceready', onDeviceReady);

function onDeviceReady() {

  if (!window.CdvPurchase) {
      console.log('CdvPurchase is not available');
      return;
  }
  const {store} = CdvPurchase;

  store.error(function(error) {
      console.log('ERROR ' + error.code + ': ' + error.message);
  });

  store.ready(function() {
    console.log("CdvPurchase is ready");
  });

  initializeStore();
  refreshUI();
}

function initializeStore() {
  // We will implement this soon
}

function refreshUI() {
  // Soon...
}

Here's a little explanation:

Line 1, it's important to wait for the "deviceready" event before using cordova plugins.

Lines 5-8, we check if the plugin was correctly loaded.

Lines 11-13, we setup an error handler. It just logs errors to the console.

Whatever your setup is, you should make sure this runs as soon as the javascript application starts. You have to be ready to handle IAP events as soon as possible.

Initialization

As mentioned earlier, we'll use iaptic for the server side integration with Braintree.

We'll instantiate the iaptic component, and use the provided braintreeClientTokenProvider and validator to handle the server-side part of the purchase process.

function initializeStore() {
  const {store, Platform, Iaptic} = CdvPurchase;

  // create the link with Iaptic
  const iaptic = new Iaptic({
    apiKey: 'ffff0000ffff0000ffff0000',
    appName: 'my.app',
  });
  store.validator = iaptic.validator;

  // purchase events handlers
  store.when()
    .approved(transaction => transaction.verify())
    .verified(receipt => receipt.finish());

  // initialize the plugin with Braintree support
  store.initialize([{
      platform: Platform.BRAINTREE,
      options: {
        clientTokenProvider: iaptic.braintreeClientTokenProvider,
      }
  }]);
}

We add the standard purchase events handlers for when the transaction is approved and the receipt verified, with the store.when() block.

In our call to store.initialize(), we add in the Braintree platform with its configuration.

In particular, it requires a Client Token provider. For this example, we'll use the implementation provided by iaptic.

User interface

You are responsible for creating a user interface that presents the detail concerning the upcoming payment. Let's create a very simple interface.

let appState = 'BASKET';
let appMessage = '';

function refreshUI() {
  const el = document.getElementById('app');
  if (!el) return;
  if (appState === 'BASKET') {
    el.innerHTML = `
      <p>${appMessage}</p>
      <p>Amount to pay for 1x Real Good: $9.99</p>
      <div><button onclick="pay()">Proceed to Payment</button></div>
    `;
  }
  else if (appState === 'PAYMENT_INITIATED') {
    el.innerHTML = `<p>Select your payment method...</p>`;
  }
  else if (appState === 'PAYMENT_APPROVED') {
    el.innerHTML = `<p>Verifying your payment...</p>`;
  }
  else if (appState === 'PAYMENT_FINISHED') {
    el.innerHTML = `<p>Payment successful!</p>`;
  }
}

This is a primitive state machine that displays the basket, then the progress of the payment flow. While in the basket, the "Proceed to Payment" button calls the pay() function.

Let's implement that function.

Payment request

function pay() {
  const {store, Platform, ErrorCode} = CdvPurchase;

  // Showing some feedback in the UI (cf refreshUI)
  function setAppState(state, message) {
    appState = state;
    appMessage = message || '';
    refreshUI();
  }

  setAppState('IN_PROGRESS', 'Please wait...');
  store.requestPayment({

    // required fields
    platform: Platform.BRAINTREE,
    amountMicros: 9.99 * 1000000,
    currency: 'USD',
    items: [{
      id: 'REAL_GOOD',
      title: '1x Real Good',
      pricing: {
        priceMicros: 5.99 * 1000000,
      }
    }, {
      id: 'DELIVERY_STD',
      title: 'Standard Delivery',
      pricing: {
        priceMicros: 4.00 * 1000000,
      }
    }],

    // optional fields
    billingAddress: {
      givenName: 'John',
      surname: 'Doe',
      streetAddress1: '1200 3rd Ave',
      locality: 'Seattle',
      region: 'WA',
      postalCode: '98101',
      countryCode: 'US',
    },
    description: '1x Real Good',
    email: 'johndoe@gmail.com',
  })
  .cancelled(() => setAppState('BASKET'))
  .failed(error => setAppState('BASKET', 'Payment failed: ' + error.message))
  .initiated(() => setAppState('PAYMENT_INITIATED'))
  .approved(() => setAppState('PAYMENT_APPROVED'))
  .finished(() => setAppState('PAYMENT_FINISHED'));
}

Let's build and test that!

Build and Test

The code above will work on both iOS and Android. We need to pick a test platform, so let's use Android.

We can build and run our app with:

npx cordova run android

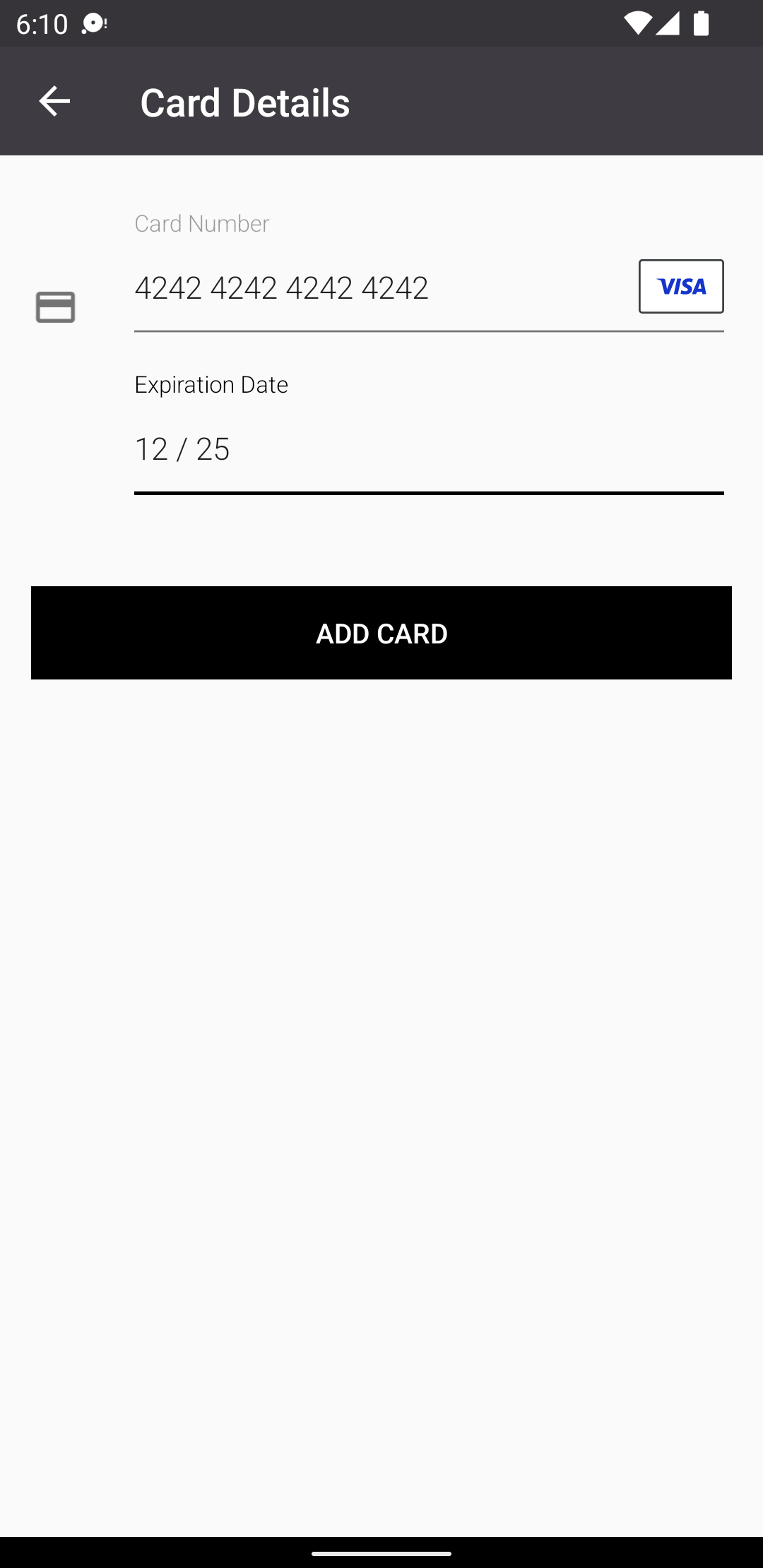

You can then make a test payment using one of Braintree's test credit card numbers, like 4242 4242 4242 4242, with an expiry date in the future.

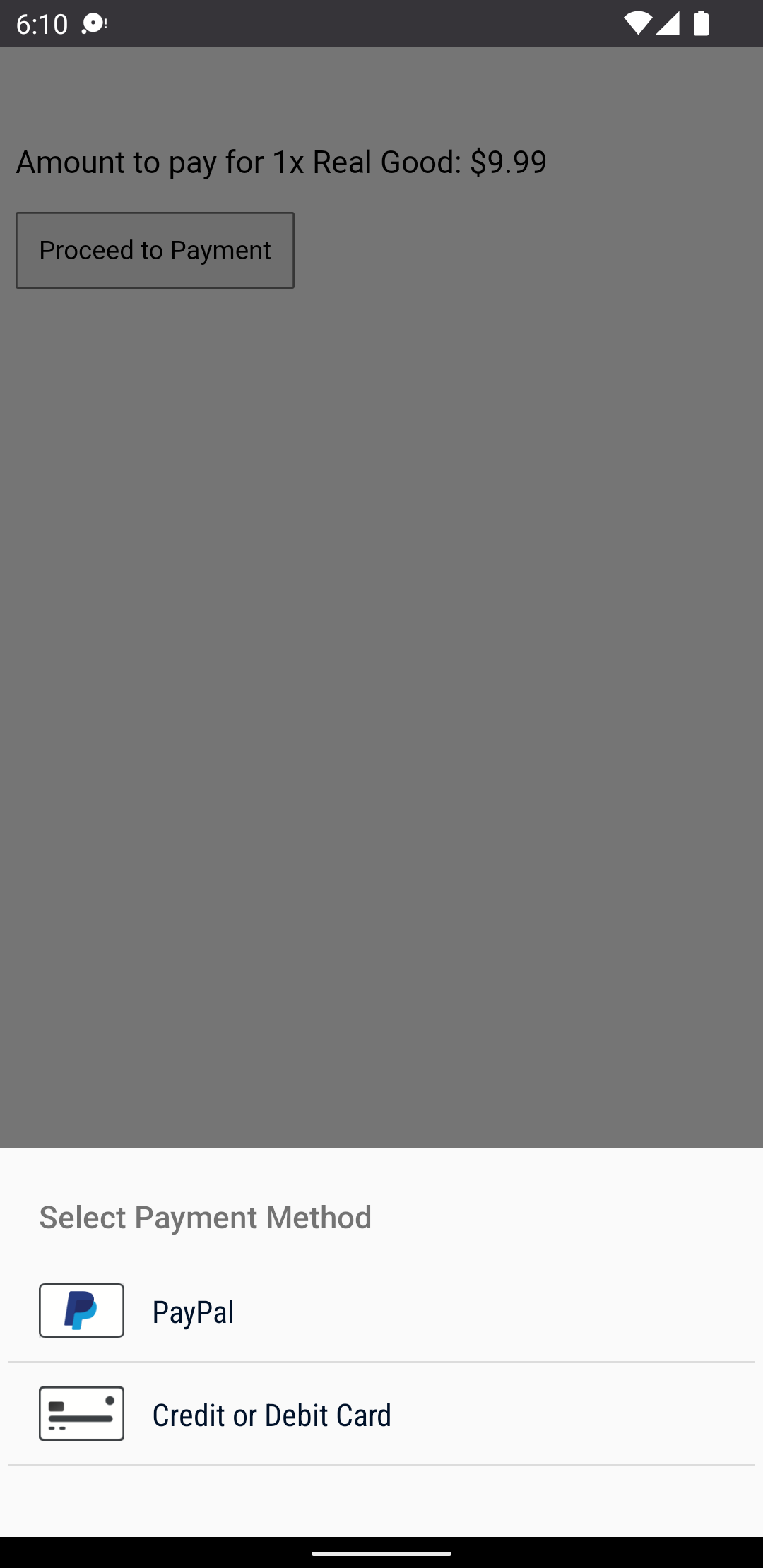

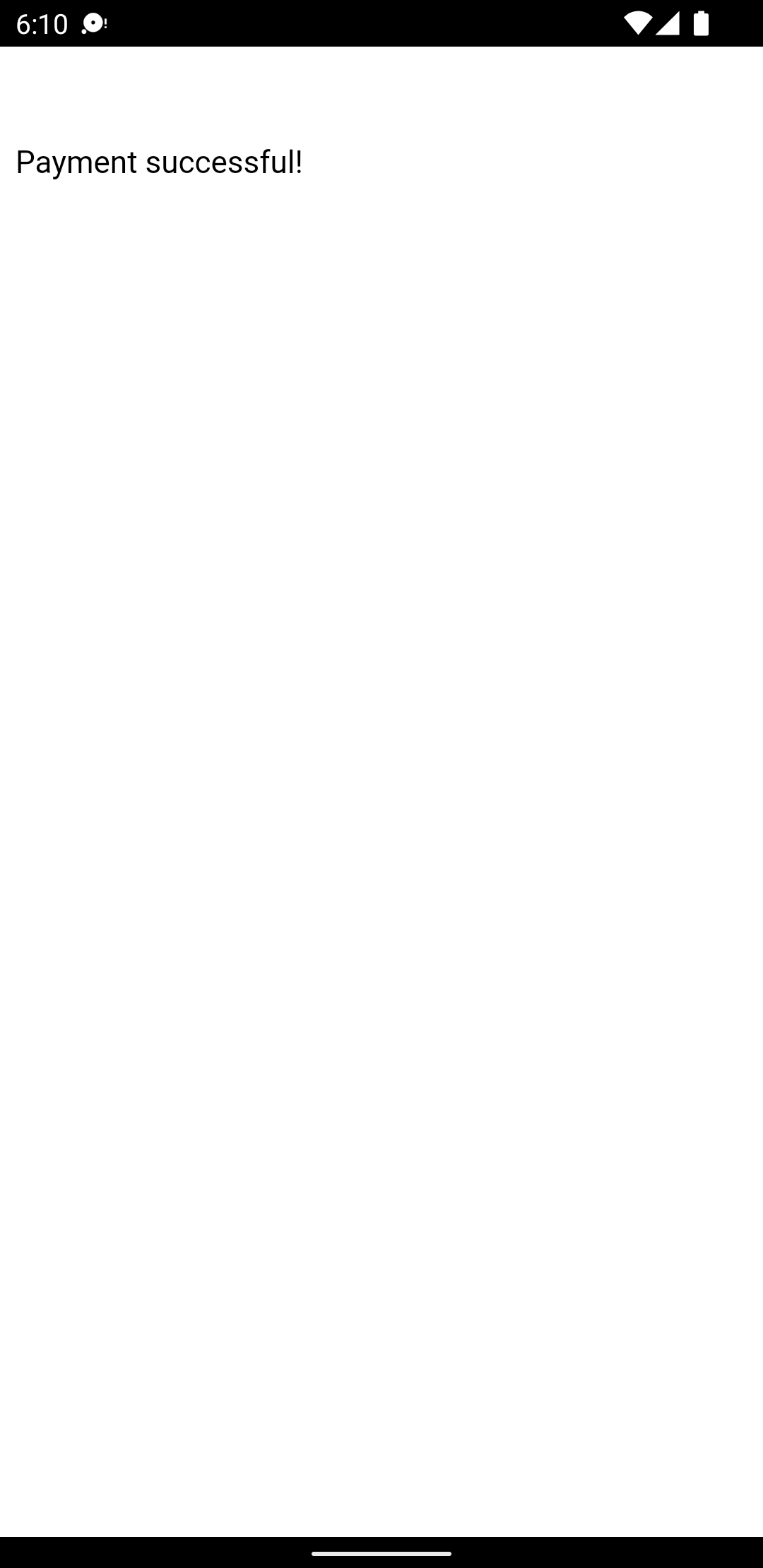

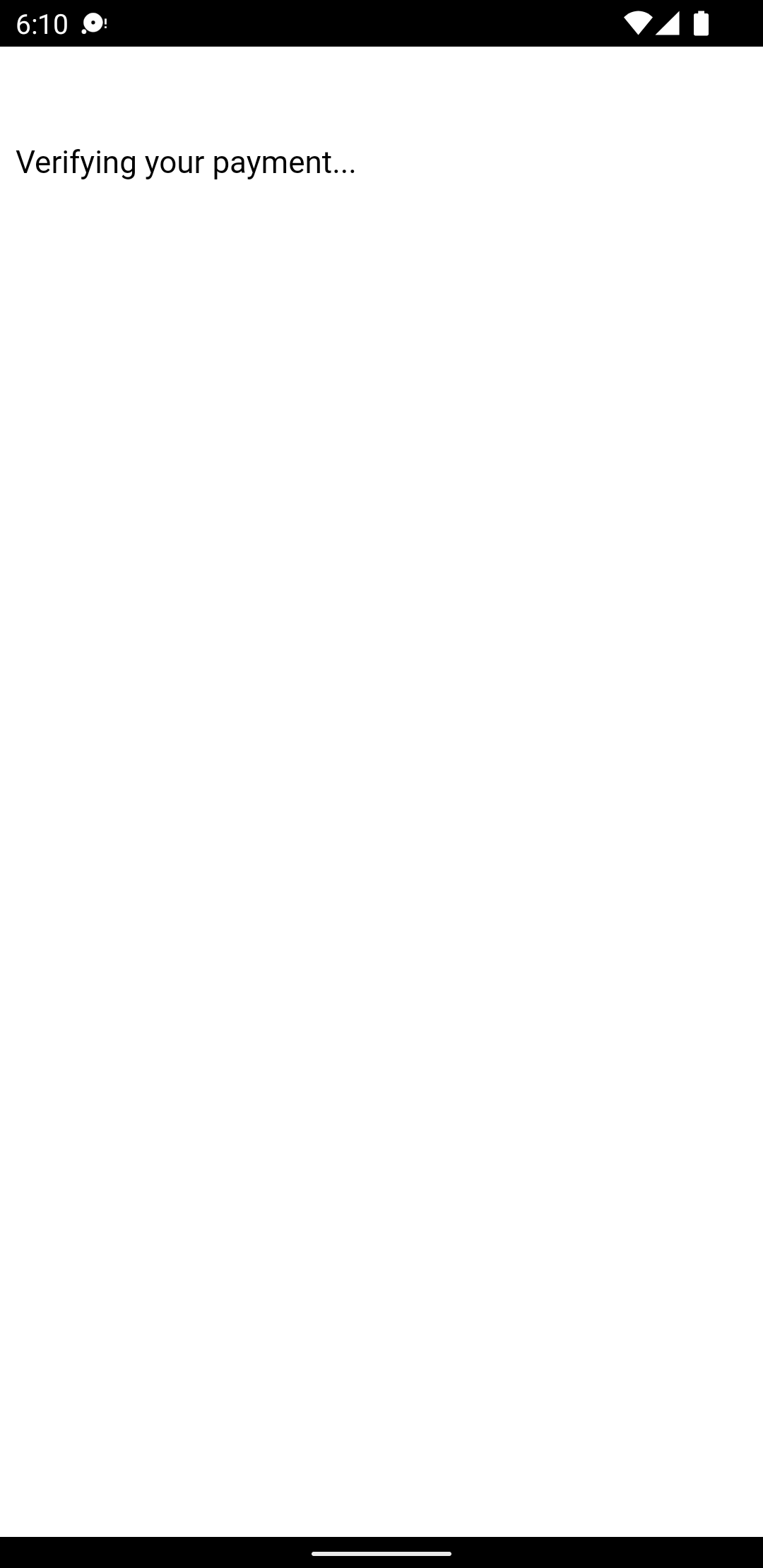

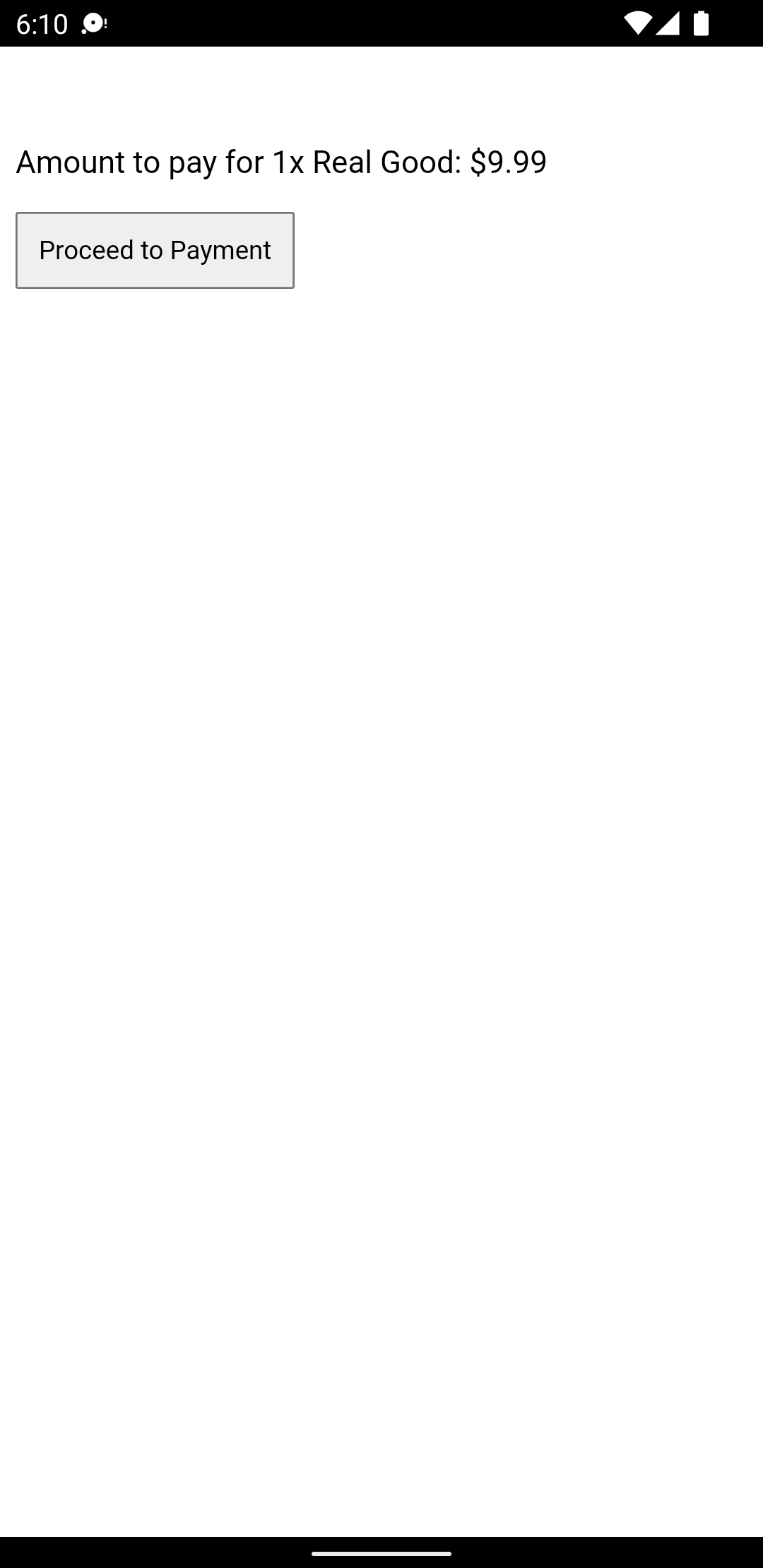

Here's the result:

Of course, your job doesn't end here. Iaptic will send a webhook notification to your server, indicating a payment for a given has been performed by the user. You should handle that webhook to deliver the purchase on your server.

Server-to-server Webhook

When an identifier user makes a purchase, iaptic sends a notification to your server with the details of the transaction.

Here's an example body content.

{
  "type": "purchases.updated",
  "applicationUsername": "my_username",
  "purchases": {
    "REAL_GOOD": {
      "platform": "braintree",
      "purchaseId": "braintree:xxxxxxxx",
      "transactionId": "braintree:xxxxxxxx",
      "productId": "REAL_GOOD",
      "purchaseDate": "2022-11-14T10:57:48.000Z",
      "currency": "EUR",
      "amountMicros": 9990000,
      "sandbox": true,
      "isPending": false,
      "amountUSD": 9.77,
      "raw": { /* ... */ }
    }
  },
  "password": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
}

You can process with enabling the feature for your user depending on this purchase status (in particular, check for a potential cancelationReason which would mean the purchase has been cancelled).

Iaptic documentation related to server-to-server webhook contains all the appropriate details, which fall outside the scope of this guide.
